List Price  $699.95

Your Price  $499.00

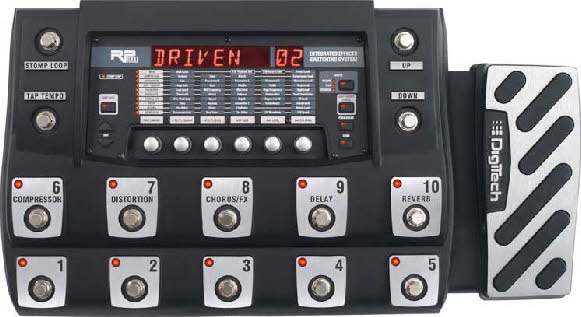

Digitech RP1000 Modeling Guitar Processor

Your sound is king
The control of your sound is imperative. The RP1000 gives you added control to express yourself the way you want - No longer will the lack of control stand in the way of your expression.

Your rig
The RP1000 integrates into your amp and with your stompboxes, not the other way around. Featuring exclusive Stompbox and Amp loops, the RP1000 doesn't get in the way of your tone and switches external stompboxes in and out of the signal path like large pro rigs. No longer will you have to do the pedal tap dance, just select your preset and your tone is engaged, just the way you like it.

Your Amp
In conjunction with the external Amp Loop, the RP1000 also features an Amp/Cabinet bypass switch that allows you to turn off the RP1000's internal amplifiers and cabinets so your amp's tone stands alone.

Simplicity of a Stompbox
Popular on the RP500, the RP1000 also features the Pedalboard option that turns footswitches 6 through 10 into stompbox style effect on/off controls.

100 Different Pedalboards
When the Amp/Cabinet Bypass is used in conjunction with the Pedalboard mode, the RP1000 turns into 100 different pedalboards. You get instant access to both preset changes and stompbox on/off control, truly the best of both worlds.

Phrase Looper
The RP1000's built-in Phrase Looper lets you create on the fly performance loops for practicing, composing, and performing. With 20 seconds of record time and controls for Stop, Play, and Overdub, you can layer different guitar parts and tones seamlessly into cool song ideas or one-man jams.

The RP1000 is built like a tank from a cast metal chassis to the 14 heavy-duty switches. A large 10 character LED display makes for easy stage use topped by a built-in expression pedal to control wahs, volume, Whammy and other parameters.

No matter how you get your tone, the RP1000 works with your gear and gives you the control you need when playing live.

Features

• Effect switching system offers control over external & internal stompboxes and effects
• Exclusive Pedalboard Mode provides on/off and real-time control to any five RP1000 effects or parameters
• Amp/Cabinet Bypass defeats internal amplifiers and cabinets in all presets
• Built-in Phrase Looper
• Built-in expression pedal controls the RP1000's Whammy?, wahs, volume, and other parameters
• Built-in chromatic Tuner
• Switchable Stompbox Loop for effects switcher control of external stompboxes and effects
• Switchable Amp Loop to retain your amp's tone
• 40 Tone and 40 Effects Libraries
• 200 presets (100 factory, 100 user)
• Over 160 effects including stompboxes, choruses, delays, amps and cabinets
• Up to 5 seconds of delay time
• 24-bit 44.1kHz sample rate
• All metal construction
• Heavy-duty metal switches for stompbox response
• Bright LEDs display program status and effect on / off
• Large 10 character LED display for preset name, bank name and tuner
• Independent 1/4" Left and Right Outputs
• Independent XLR Left and Right Outputs with ground lift
• Amp / Mixer switch optimizes 1/4" outputs for amp or direct to mixer connections
• Stereo 1/8" headphone output
• Cubase LE4 Music Production Software included
• Downloadable X-Edit Librarian Software
• 2 x 2 USB audio streaming
• Power supply included

General Specifications

• Chassis: Durable cast metal construction
• Display: Large 8 character alpha-numeric and 2 character numeric LED display
• A/D Converter: 24-bit high performance audio
• D/A Converter: 24-bit high performance audio
• Sampling Frequency: 44.1kHz throughout
• DSP Section: 1 Audio DNA2? DSP Processor
• Preset Memory: 100 User / 100 Factory Presets

Controls

• Footswitches: 14 heavy duty vacuum-style switches control Tap Tempo, Stompbox Bank up/down, Program select, and Effect on/off. Footswitches also access Tuner, Bypass, and Phrase Looper functions.
• Expression pedal: Built-in

Analog Input Connections

• Guitar input:
  Impedance: 1M Ohms
  Maximum Input signal: 12 dBu
• Stompbox Loop input:
  Impedance: 16K Ohms
  Maximum Input signal: 12 dBu
• Amp Loop input:
  Impedance: 16K Ohms
  Maximum Input signal: 12 dBu

Analog Output Connections

• Line outputs:
  Impedance: 1K Ohms unbalanced / 2K Ohms balanced
  Maximum Output level: 22 dBu
• XLR Mixer Outputs:
  Impedance: 2k Ohms balanced
  Maximum Output Level: 22 dBu
• Stompbox Loop output:
  Impedance: 600 Ohms
  Maximum Output signal: 12 dBu
• Amp Loop output:
  Impedance: 600 Ohms
  Maximum Output signal: 12 dBu
• Headphone Outputs:
  Minimum Headphone Impedance: 50 Ohms
  Electronic SNR: = 110dB
• USB: 2.0 compliant
• Audio streaming: 2 channels to computer, 2 channels from computer
• Sample rate: 44.1 kHz

External Control Input

• Looper Footswitch Input: for use with optinal DigiTech FS3X

Size/Dimensions

• Unit Dimensions: 19.75" W x 10.75" D x 3.75" H
• Shipping Dimensions: 25" x 7" x 15" (W x H x D) (approximate)
• Shipping Weight: 8.0 lbs (approximate)

Windows Software Requirements

• Vista Home/Premium, XP Home/Professional (SP2 installed, .NET 2.0 installed*)
• Pentium™/Athlon? 1.4GHz or later
• 512MB RAM (1GB RAM recommended)
• 180MB hard disk space for application
• DVD-ROM drive
• USB Port
• Internet connection required for Cubase activation
• *.NET 2.0 will be installed during installation of X-Edit software if required on XP systems

Mac Software Requirements

• OS 10.4.x or later
• PowerPC G4/G5 1GHz or later
• 512MB RAM (1GB RAM recommended)
• 180MB hard disk space for application
• DVD-ROM drive
• USB Port
• Internet connection required for Cubase activation
