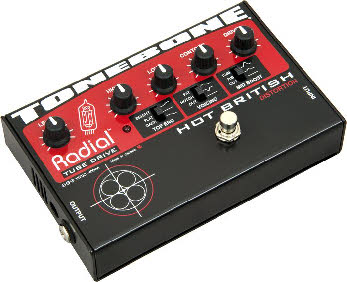

Radial Engineering HOT BRITISH
The Tonebone Hot British is tube distortion at its best! Fashioned from a modified
Marshall double-stack plexy, the Hot British delivers five decades of brute power
for everything from scooped-out chunky rhythm to screaming sizzling hot lead tones.
Based on high-gain amplifier designs, the Hot British employs a triple hybrid gain
stage that combines the control and dynamics of solid-state with the warmth and harmonic
generation only possible from a real 12AX7 tube. This unique design produces ultra-rich
harmonic textures and full-on saturated tube settings without the mud or noise that
is typical with other pedals. Listen and you will hear how each note retains its
distinctiveness and clarity, right down to the lowest notes.
Switch on the Contour, dial in the interactive EQ and wham! Enter a world where huge,
musically rich tones that you never thought possible magically come alive. No other
pedal delivers more - no other pedal even comes close!
Features:
- A high-gain double-stack 'plexy-in-a-box'!
- Real 12AX7 tube for natural overdrive
- Powerful EQ for extreme tonal range
- Retains note clarity even at high gain
- Compact & low profile to fit your pedalboard
Specifications:
- Circuit type: Hybrid tube / proprietary circuit
- Tube type: 12AX7 vacuum tube
- Input impedance: 1meg Ohm at input jack
- Output impendence: 10K Ohm
- MID BOOST 3-way switch: Used to fatten up the sound for more cut and sustain during
solos. Also, will fatten up the sound of single coil pickups * High: +12dB @ 620Hz
* Medium: +6dB @ 390Hz * Bypass: No boost
- Drive control: Used in conjunction with the drive gain switch, drive is used to adjust
the overall amount of gain to the overdrive circuit.
- VOICING 3-way switch: Allows the user to jump to chunky scooped rhythms in the NOTCH
position or huge solos in the FAT position. * FAT: Mid-boost - passive filter
* bypass: Flat * NOTCH: Mid-cut - passive filter
- Contour control: Used in conjunction with the VOICING selector switch, 'contour'
dials-in the mid-center frequency with cut or boost with the switch in the NOTCH
or FAT position.
- TOP END 3-way switch: Switch sets the overall tonal character of the Classic to best
match the amp and settings. Brighter amps are normally compensated with darker settings.
* Bright: Boosts +6dB @ 10kHz * Flat: No boost * Dark: Cuts -6dB @ 1.8kHz
- HIGH & LOW EQ controls: Unity gain to +15dB * Low: +/- 14.5 db @ 100Hz * High:
+/- 10 db @ 4.3kHz
- LEVEL control: Used to balance the output level between the input drive without altering
any of the tonal characteristics. Works like the master volume on an amplifier.
- Footswitch: True bypass with green on/off status LED; Heavy-duty high-cycle switch
- LED indicator: Large 3mm OD ultra-bright status LED
- Switching: Opto-coupler assisted, 5msec Rise time
- Construction: 14 gauge steel, baked enamel finish
- Dimensions (W x D x H): 7" x 4.25" x 2" (174 x 108 x 51 mm)
- Weight: 2.15 lbs. (1 kg)
|
