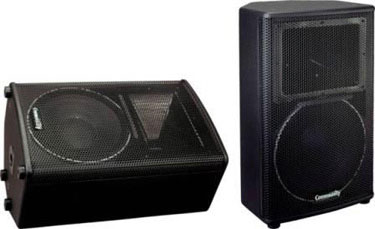

Community S-1296
The S-1296 is a two-way, ruggedly built full-range loudspeaker system, suitable for
both portable use and fixed installations.
Compact, but extremely powerful, the S-1296 handles applications ranging from clubs
and AV presentations, to rock and roll performances.
Its multi-angle design allows it to function equally well as a Stage Monitor or a
Front of House system. As a stage monitor, the performer has a choice of 90º, 125º
and 145º angles of inclination from the stage floor. When used as a FOH system, the
enclosure may be flown from its M10 threaded rigging points, supported on a stand,
or ground supported.
Utilizing advanced technologies normally found only in high priced touring systems,
the S-1296 provides extended high frequency response, low distortion output, and
precise pattern control.
Featuring carefully designed crossovers that provide flat acoustic power response
throughout the critical midrange region, and Community's exclusive DYNA-TECH dynamic
driver protection circuitry, the S-1296 is a versatile performer well suited for
use by professional audio rental companies, touring musicians, and other requiring
high quality sound reinforcement at an affordable price.
Applications
- Stage Monitoring
- Nightclubs
- Theatres
- Sound Stages
- AV Presentation
Features
- DYNA-TECH Dynamic Protection
- Switchable Bi-amp/Single-amp Operationg
- Switchable Music/Speech Voicing
- Ferrofluid Treated HF Driver for Improved Heat Transfer
- Non-Resonant, Non-Metallic HF Diaphragm for Reduced Distortion
- Carbon Ring Cone Technology Provides 30% More piston Area with Increased Excursion
Capability
- Dual NL4 and Dual 1/4" Input/Output Connectors
Specifications
- Format: Two-way full-range, vented bass-switchable passive or bi-amp x-over
- Operating Range: 60Hz-20kHz
- Frequency Response: 100Hz-16kHz (+/-4dB)
- Dispersion (-6dB): 90º H x 60º V (in vertical position)
- Maximum SPL @ 1m: 122 dB continuous/129 dB peak
- Crossover Frequency: 1.5kHz
- Sensitivity in SPL (1W/1m, free space):
99dB (100Hz - 10kHz, 1/3 octave)
99dB (250Hz
- 4kHz, speech range) - Max Power Handling (passive mode):
200W RMS
500W Program/990W Peak - Impedance (passive): Nominal 8 ohms/min. 4 ohms at 10.6kHz
- Transducers:
Low Frequency: 12" 200W RMS, 500W Program, 8 ohms
High Frequency: 1" 50W
RMS, 125W Program, 4 ohms - Enclosure: Multi-angle (90º, 125º, and 145º) 11-ply cross-laminated birch
- Finish: Black catalyzed polyester paint
- Rigging Provisions: Eight M10 threaded rigging fittings (three on top, three on bottom,
two on rear)
- Grille: Steel, powder coated black
- Dimensions (H x W x D): 23.9" x 14.9" x 13.4"
- Net Weight: 36 lbs
Community S-1296 Speaker, 2-Way, 1x12", 500W (Sold Each)
