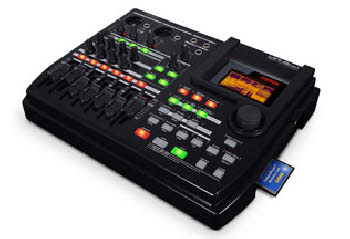

Fostex MR8MKII
The ultimate record-anywhere multitrack.
Capture inspiration whenever and wherever you are. The new MR-8 Mk II is the easiest
to use digital multitrack ever. If you can operate a tape recorder, you'll be recording
and multitracking within minutes of opening the box.
By putting all the major controls and functions right there on the top panel instead
of buried in a confusing menu system, the MR-8 Mk II, unlike some other recorders,
actually aids you in capturing your musical ideas. In addition there's great sounding
built-in digital effects, guitar amp and mic simulators, handy mix-down effects,
plus the ability to hook up to a PC for data editing, and backing up your songs.
You create. Fostex records.
New for the Mk II is the USB host feature which allows for the easy connection of
an 'off-the-shelf' CD-R burner via USB. Making CD masters has never been more simple.
Recording time
Recording time in NORMAL MODE (16bit/44.1kHz) is approx. 25 track-minutes on the
supplied 128MB CF card and 50 track-minutes on a 256MB card. EXTENDED MODE (16bit/22.05kHz)
doubles the recording time. Note that recording time varies depending on recorded
source, punch in/out, undo/redo status, etc.
" 8-track recording onto CompactFlash Card. " High quality sound recording and playback
with uncompressed linear 16-bit/44.1 kHz digital audio (normal mode) with 2 track
simultaneous recording and 8 track playback. " LP Mode (16-bit/22.05 kHz) doubles
the recording time. " Physical knobs and buttons for intuitive operations. A new
dial knob for menu selection. " Newly added +48V Phantom Power on all two Mic Inputs
for wider choice of microphones. " USB Host function ready for CD burning on an off-the-shelf
external CD-R drive.Improved 132 x 64 dot-matrix LCD and self illuminating keys visually
show the current status. " Improved built-in digital effects including Reverb, Delay
as well as Guitar Amp and Microphone simulations " Black colored top panel design
" Analog Guitar Distortion with the dedicated knob on Input A. " Full-track (8-track)
bouncing to a New Song (track 7/8) for PC transfer and CD burning. " Mastering effects
for stereo buss. " USB port for stereo WAV file transfer to and from PC " Twin headphones
Outs " AC and Battery (6 x AA alkaline cells) operation. Approx. 4 hours maximum
operation time with batteries. " Built-in microphone for handy song memo. " Two headphones
outputs. " Free "WAV Manager" software available for multiple mono files transfer
to and from PC
RECORDING/PLAYBACK Recording Medium CompactFlash Approx. Recording Time 6 minutes
(8-track on 256MB CF) normal mode Recording Format FAT16 Sampling Frequency 44.1
kHz (Normal Mode), 22.05 kHz (LP Mode) Quantization 16-bit linear (non-compression)
A/D Converter 24-bit Delta-Sigma D/A Converter 24-bit Delta-Sigma No. of Recording
Tracks 8 tracks maximum No. of Simultaneous Rec. 2 tracks Recording/Reproduction
Frequency 20 Hz - 20 kHz (Normal Mode) Dynamic Range 87dB or more (typical)(Normal
Mode) T.H.D. 0.05% or less (typical)(Normal Mode) INPUTS/OUTPUTS Analog In (INPUT
A/B)
Connector:
Input Level:
Input Impedance:
Phantom Power:
- XLR-3-31 type (Pin2:hot) and ø 6mm TRS phone
-48dBV (MIC) - +4dBV (LINE)
1.5k ohm or more (MIC/BAL)
-48dBV (MIC) - +4dBV (LINE)
1.5k ohm or more 400k ohm or more (GUITAR on INPUT A)
P48V (on/off selectable) Stereo Out (L,R)
Connector:
Output Level:
Load Impedance:
ø 6mm stereo phone
-10dBV (unbalance)
10k ohm or more Headphones
Connector:
Max Output:
Load Impedance:
2 x 6mm stereo phone
30mW or more (@32 ohm)
16 ohm or more MIDI Out
Connector:
Format:
DIN 5 Pin
MIDI Standard Foot Switch
Connector:
Level:
ø 6mm phone
TTL Level Digital Out
USB 2.0 Hi Speed:
USB 1.1 Hi Speed:
Connector B Type
Connector A Type Digital Out
Connector
- B type (data save/load controlled from PC) General Dimensions 286(W) x 220(D) x
65(H) mm Weight Approx. 1.6 kgs Power Requirement DC12V, 400mA
|
