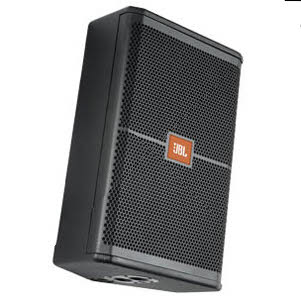

JBL-MRX512M 12" 2-way, bass-reflex, main PA/monitor Loudspeaker

BL-JRX115 15" Two-Way Speaker

List Price  $799.95

Your Price  $649.00

Eligible for Free Ground Shipping

JBL-MRX512M 12" 2-way, bass-reflex, main PA/monitor Loudspeaker

 The MRX512 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage applications.

Key Features:

• 12" Differential Drive® woofer for high-power capacity and very lightweight
• 1.5" annular polymer diaphragm compression driver
• Compact and low-profile for minimal obstruction of
  audience sight-lines
• 70° x 70° coverage for even and smooth response on and off axis
• Dual-angle pole socket for applications requiring tripod mounting
• Heavy Duty 16 gauge protective screen backed steel grille
• Tough DuraFlex™ enclosure finish

Applications:

• Speech reinforcement
• Live performance stage monitoring
  Reinforcement of vocal and acoustic music
• High-performance main speakers for use with subwoofers

The MRX512M is a premium, utility/monitor speaker. The MRX512M uses a JBL 262H 305 mm (12 in) Differential Drive® woofer and a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 400 watts (continuous) power capacity. A 70° x 70° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation. NL4 connectors are provided on both ends of the speaker to keep cable runs tidy on stage when used in the monitor application and for easy access when used on tripods. A passive network provides accurate reproduction throughout the cross-over region. For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex™ finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

Specifications:
Frequency Range: 60 Hz - 20k Hz

Frequency Response: 90 Hz - 20k Hz

Sensitivity: 97dB SPL

Nominal Impedance : 8 ohms

Power Capacity : 400 W / 800 W / 1600 W

Rated Maximum SPL : 123 dB SPL continuous (129 dB SPL peak)

Coverage Pattern: 70º x 70º nominal

High Frequency Driver : 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Low Frequency Driver : 1 x JBL 262H 305 mm (12 in) Differential Drive® woofer

*May be used as Mains or Monitors
