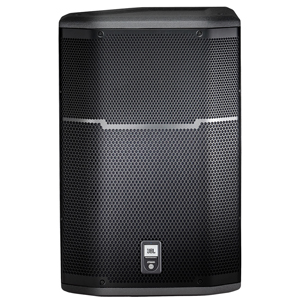

JBL PRX615M 15 in. Two-Way Self-Powered Reinforcement Speaker
The PRX600 Series represent an evolutionary step in the efficient use of amplifier
power, rugged durability and enhanced versatility in a self-powered loudspeaker.
Designed from the ground up to perform in the real world of sound reinforcement where
challenging audio environments, high ambient noise levels and loud volumes are the
norm, the PRX600 Series are built to last a lifetime using our reliable and trustworthy,
tour-tested technology. Knowing you can rely on your system to deliver everything
you need gives you the freedom to deliver your best. That’s performance you can trust.
The 2-way 15" is the most recognizable form of portable PA loudspeakers and offers
the perfect balance between size and performance. The PRX615M truly is an exception;
it’s small, light weight, versatile and powerful.
Features:
Maximum SPL Output 135db peak
380 mm (15 in) Differential Drive® dual voice-coil
and magnetic gap, neodymium woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium
magnet compression driver
1000 Watt (dual 500 watt) Class-D, Crown® digital amplifier
DSP input section with dbx® Type IV™ limiter circuit, crossover, dynamic limiting,
component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument
inputs, with loop through
Integrated 36mm dual-angle pole mount socket
Large die-cast
aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
8
M10 Suspension points and 1 pullback point
Applications :
The 2-way 15" offers the perfect balance between size and performance.
The PRX615M truly is an exception; it’s small, light weight, versatile and powerful.
The performance and asymmetrical design make this a perfect choice for musicians,
entertainers and DJ’s when portability is key, or when hung by the suspension points,
an exceptional light-duty installation speaker. All PRX600 Series speakers were designed
to excel in sound reinforcement where challenging audio environments and loud volumes
are the norm. For applications requiring full bandwidth sound reproduction, the PRX615M
delivers the optimum balance. For live music, recorded music playback and speech
the user has the option of tailoring the EQ, ‘flat’ for speech intelligibility, and
‘boost’ for enhanced bass and crisp highs in recorded music playback. A microphone
can be directly connected to the speaker input for quick PA applications. Coupled
with a PRX600 sub-woofer the system becomes an efficient, full-range sound system.
The PRX615M is comprised of a 380 mm (15 in) 265F Differential Drive® dual voice-coil
and magnetic gap, neodymium woofer, a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm,
neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt
(dual 500 watt) Crown® Class-D power amplifier. A propriety DSP chip is at the core
of a fully featured input section, providing user selectable system EQ, protection,
input sensitivity selection, cross-over functionality, dynamic limiting and discrete
component optimization.
All PRX600 cabinets are built from a combination of 25mm
(on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar
plywood made structurally sound with tongue and groove joints. All PRX600 Series
cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from
dent-resistant 16 gauge steel and handles are made from light-weight glass-filled
nylon for added strength and durability. All M10 suspension points are constructed
from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity
switch provides extra flexibility, making it possible to connect literally any sound
source without using a mixer. Signal present and overload lights indicate the system
status and assist in setting the optimum level, via the level control knob
System Type : Self-powered 15",two-way, bass-reflex
Maximum SPL Output:Full Range:
135 dB peak Monitor: 134 dB peak
Frequency Range (-10 dB): Full Range: 54 Hz – 18
kHz Monitor: 48 Hz – 20 kHz
Frequency Response (±3 dB): Full Range: 45 Hz – 19 kHz
Monitor: 60 Hz – 18 kHz
Coverage Pattern:90º x 50º nominal
Amp Design:Crown® Class
D
Power Rating:1000 W ( 2 x 500 )
Dimension (H x W x D): 26.0 in x 16.9 in x 16.3
in
Net Weight:43.5 lb
