TC Electronic M-350

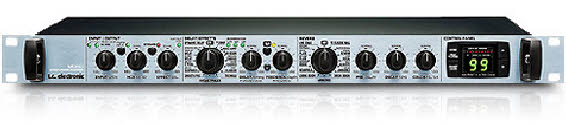

M350 Dual-Engine Processor
M350 is an extremely user-friendly dual engine rack processor which is equally suited
for live and studio applications. It combines 15 brand-new TC-quality reverbs with
15 multi-purpose effects including delay, modulation and compression. Studio engineers
and recording musicians will benefit from the included AU/VST compatible software
editor, which allows for seamless control and editing integration with DAW systems.
Through the included software editor, parameters and preset recalls may be fully
automated or real-time controlled. High density 24 bit processing and AD/DA conversion
delivers the full transparency of TC reverbs and effects.
Choice Selection of Effects
The M350 s reverbs include: classic TC hall, cathedral, ambience, room as well as
plates and springs, and the comprehensive effects section includes a number of essential
compression, modulation and delay variations.
Optimized Presets
The 256 factory presets cover a wide range of applications and audio sources, and
enable you to use the M350 right out of the box. With 99 additional user presets,
the total number of presets amount to 355.
Easy Front Panel Access
M350 was designed with the utmost user-friendliness in mind. All reverb and effect
types and parameters are accessible directly from the front panel, ensuring maximum
flexibility in any given situation.
Perfect for Computer Recording
Through the included software, the user can control and edit the M350 s parameters
stand-alone and in any AU/VST environment.
Comprehensive I/O
The auto-sensing digital input at 24 bit S/PDIF ensures bullet-proof input connection
in any setup. Furthermore, the M350 comes with an easy-to-read preset display, and
provides MIDI in/out, MIDI clock tempo sync, pedal control of tap tempo, and global
bypass.
Features:
- Full DAW integration through VST/AU compatible editor
- 15 true and stunning stereo reverbs
- 15 legendary effects
- 5 seconds of delay
- 256 multi-effect/reverb presets + 99 user preset locations, a total of 355 presets
- Internal power supply no wallwart !
- Dual send/return & serial style setups
- Auto-sensing 24 bit S/PDIF digital I/O, 44.1-48 kHz
- Tap tempo
Digital I/O Specifications:
- Connector: RCA Phono (S/PDIF)
- Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
- Sample Rates: 44.1 kHz. (48 kHz only @ Digital Input)
- Processing Delay: 0.08 ms @ 48 kHz
- Frequency Response DIO: DC to 23.9 kHz ± 0.01 dB @ 48 kHz
Analog Input Specifications:
- Connectors: 1/4" phone jack, mono sense
- Impedance, Bal / Unbal: 21 kOhm / 13 kOhm
- Max. / Min. Input Level @ 0 dBFS: +24 dBu / 0 dBu
- Sensitivity Range @ 12 dB headroom: -12 dBu to +12 dBu
- A to D Conversion: 24 bit, 128 x oversampling bitstream
- A to D Delay: 0.70 ms / 0.65 ms @ 44.1 kHz / 48 kHz
- Dynamic Range: typ < -92 dB, 22 Hz to 22 kHz
- THD: typ < -90 dB (0.0032 %) @ 1 kHz, -1 dBFS
- Frequency Response: +0/-0.1 dB, 20 Hz to 20 kHz
- Crosstalk: typ < -100 dB, 20 Hz to 20 kH
Analog Output Specifications:
- Connectors: 1/4" phone jack
- Impedance Bal / Unbal: 40 Ohm / 20 Ohm
- Max. Output Level: +14 dBu
- D to A Conversion: 24 bit, 128 x oversampling bitstream
- D to A Delay: 0.68 ms / 0.63 ms @ 44.1 kHz / 48 kHz
- Dynamic Range: typ < -105 dB typ, 22 Hz to 22 kHz
- THD: typ < -97 dB (0.0014 %) @ 1 kHz, +13 dBu
- Frequency Response: +0/-0.5 dB, 20 Hz to 20 kHz
- Crosstalk: typ < -100 dB, 20 Hz to 20 kHz
General Specifications:
- EMC: Complies with EN 55103-1 and EN 55103-2
- Safety: Certified to IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093
- Operating Temperature: 32° F to 122° F (0° C to 50° C)
- Storage Temperature: -22° F to 167° F (-30° C to 70° C)
- Humidity: Max. 90 % non-condensing
- MIDI Control Interface: In/Out: 5 Pin DIN
- Pedal Control Interface: 1/4" phone jack
- Finish: Anodized aluminum front Plated and painted steel chassis
- Display: 2 x 7 segment + LED s
- Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
- Power Consumption: <15 W
- Warranty, Parts and labor: 1 year
- Dimensions: 19" x 1.75" x 4.2" (483 x 44 x 105.6 mm)
- Weight: 3.3 lbs. (1.5 kg)
|
